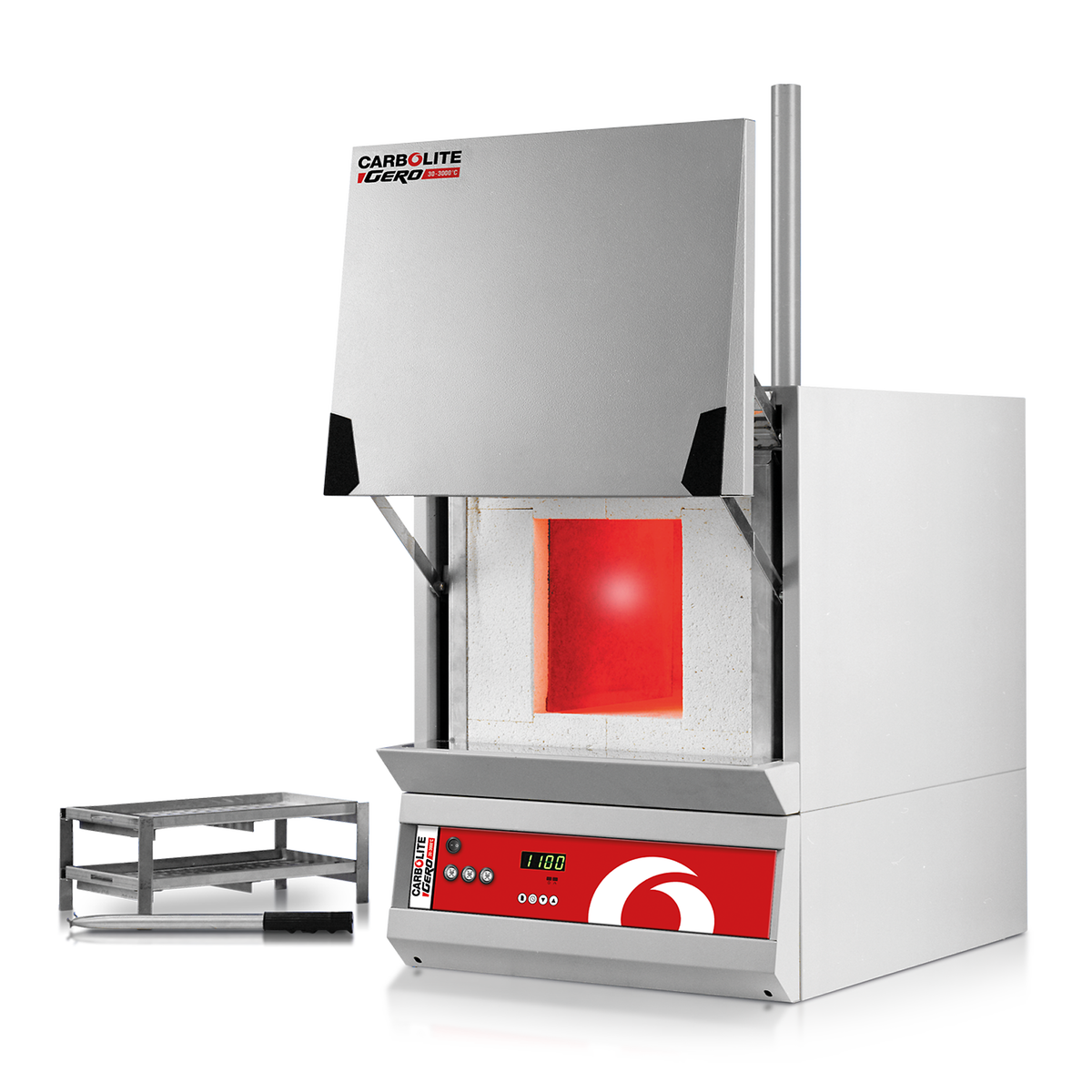

Ashing Furnace AAF - 18 & 32 litres
| Max temp (°C) | 1100 |
| Heat-up time (mins) | 70 |
| Max continuous operating temp (°C) | 1000 |
| Dimensions: Internal H x W x D (mm) |
235 x 196 x 400 |
| Dimensions: External H x W x D (mm) |
705 x 505 x 675 |
| Dimensions: External with door open H x W x D (mm) |
990 x 505 x 675 |
| Dimensions: Height to top chimney (mm) | 990 |
| Volume (litres) | 18 |
| Max power (W) | 7080 |
| Holding power (W) | 3500 |
| Thermocouple type | K |
| Weight (kg) | 70 |
| Max temp (°C) | 1100 |
| Heat-up time (mins) | -- |
| Max continuous operating temp (°C) | 1000 |
| Dimensions: Internal H x W x D (mm) |
250 x 280 x 450 |
| Dimensions: External H x W x D (mm) |
820 x 690 x 775 |
| Dimensions: External with door open H x W x D (mm) |
1115 x 690 x 910 |
| Dimensions: Height to top chimney (mm) | 1210 |
| Volume (litres) | 32 |
| Max power (W) | 9000 |
| Holding power (W) | ---- |
| Thermocouple type | K |
| Weight (kg) | 100 |
| Max temp (°C) | 1200 |
| Heat-up time (mins) | 70 |
| Max continuous operating temp (°C) | 1100 |
| Dimensions: Internal H x W x D (mm) |
235 x 196 x 400 |
| Dimensions: External H x W x D (mm) |
705 x 505 x 675 |
| Dimensions: External with door open H x W x D (mm) |
990 x 505 x 675 |
| Dimensions: Height to top chimney (mm) | 990 |
| Volume (litres) | 18 |
| Max power (W) | 7080 |
| Holding power (W) | 3500 |
| Thermocouple type | R |
| Weight (kg) | 70 |
| Max temp (°C) | 1200 |
| Heat-up time (mins) | -- |
| Max continuous operating temp (°C) | 1100 |
| Dimensions: Internal H x W x D (mm) |
250 x 280 x 450 |
| Dimensions: External H x W x D (mm) |
820 x 690 x 775 |
| Dimensions: External with door open H x W x D (mm) |
1115 x 690 x 910 |
| Dimensions: Height to top chimney (mm) | 1210 |
| Volume (litres) | 32 |
| Max power (W) | 9000 |
| Holding power (W) | ---- |
| Thermocouple type | R |
| Weight (kg) | 100 |
Please note
- Holding power is measured at 500°C
- Heat up rate is measured to 100°C below max, using an empty chamber
- Maximum power and heat up times based on a 240V supply
Content may be subject to modifications or corrections
