Laboratory Chamber Furnace - CWF

The CWF range of general purpose laboratory chamber furnaces is bench mounted. Models are available in five sizes with a maximum operating temperature up to 1300 °C.

Standard features

1100°C, 1200°C or 1300°C maximum operating temperature
5, 13, 23, 36 or 65 litre chamber volumes
Programmable EPC3016P1 controller
Vertical lift door keeps heated surface away from the user
Soft closing door on 5, 13 & 23 litre models protects the thermal insulation
Hard wearing alumina element carrier, furnace entrance and hearth
Energy efficient low thermal mass insulation
Free radiating wire wound elements for optimum uniformity
Easy access to elements & controls simplifies maintenance & servicing

Options (specify these at time of order)

A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available - more information about controllers
Over-temperature protection (recommended to protect valuable contents & for unattended operation)
A range of metallic retorts to work with modified atmospheres up to 1100°C
Bespoke specifications are available for AMS2750H (Nadcap) compliant applications

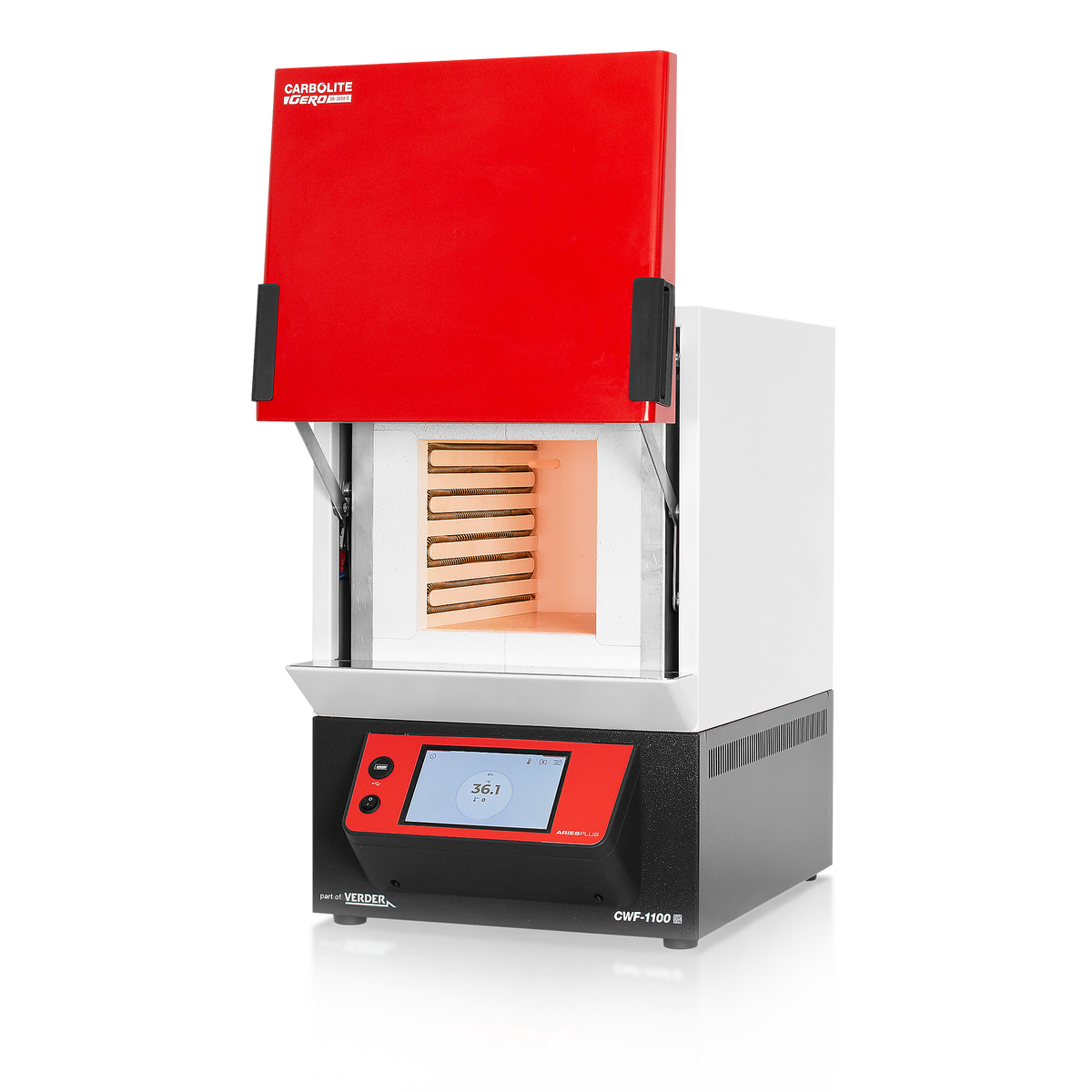

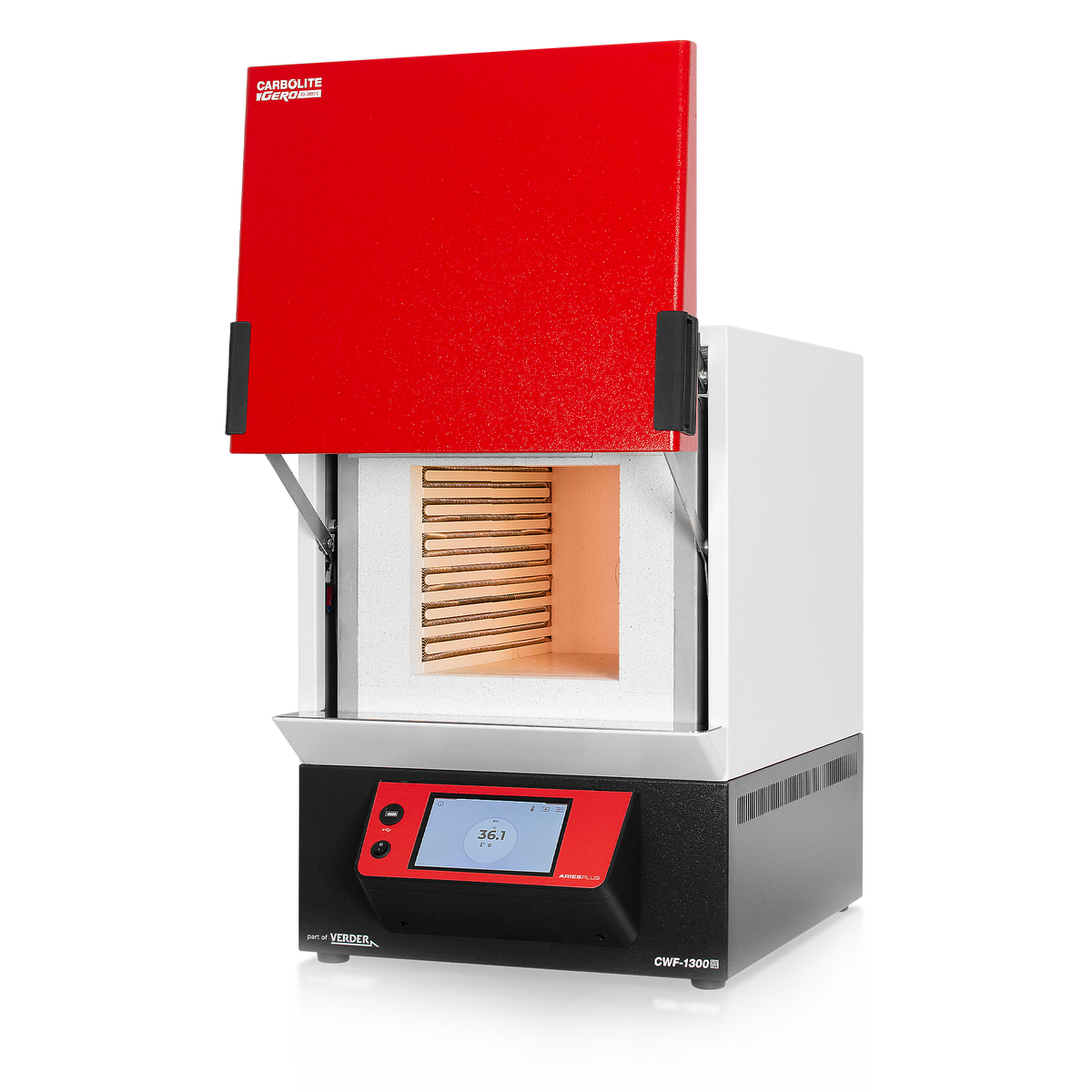

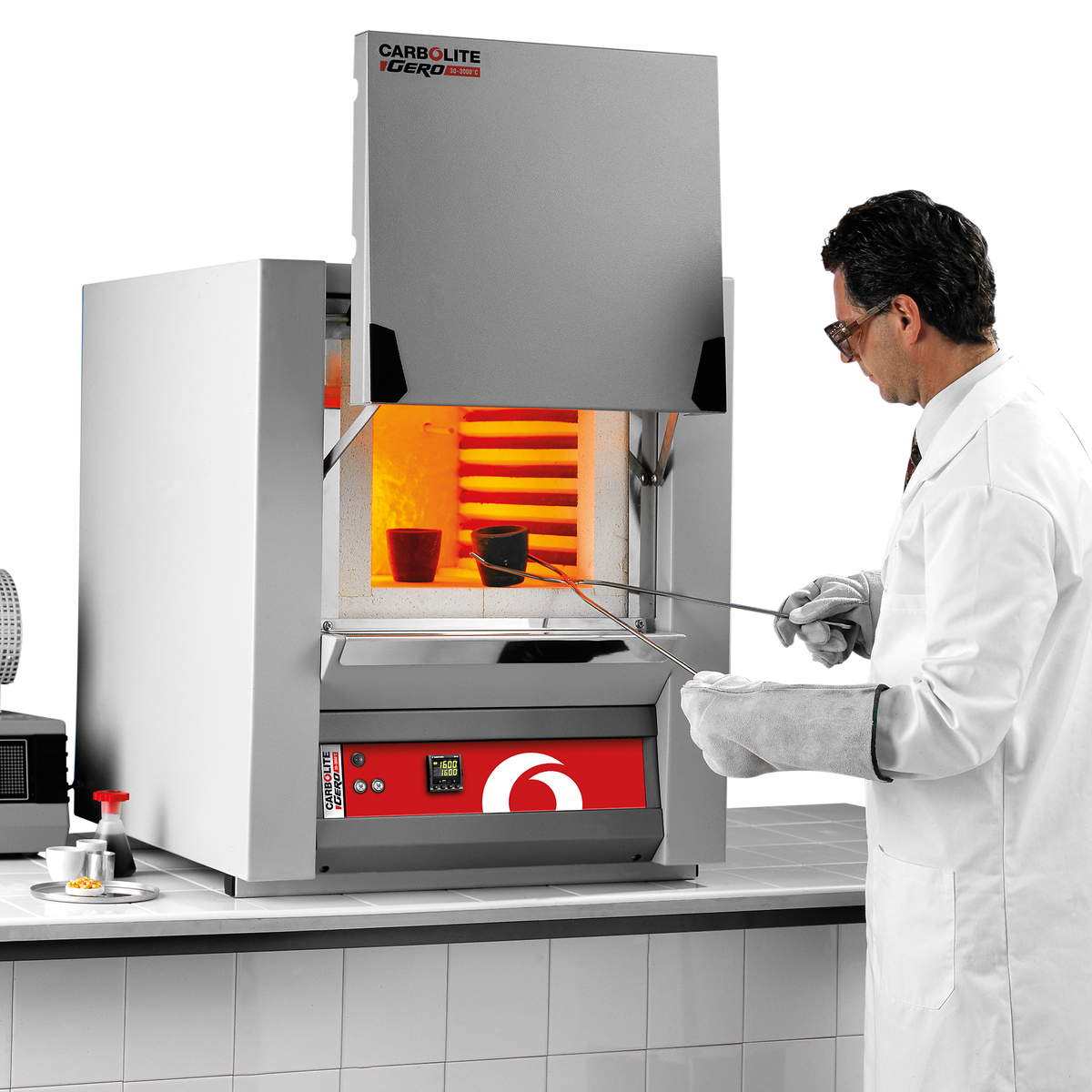

Laboratory Chamber Furnace - CWF Examples

Laboratory Chamber Furnace - CWF Technical Data

	Max temp (°C)	Heat-up time (mins)	Max continuous operating temp (°C)	Dimensions: Internal H x W x D (mm)	Dimensions: External H x W x D (mm)	Dimensions: External with door open H x W x D (mm)	Temperature uniformity of ± 5°C within H x W x D (mm)	Volume (litres)	Max power (W)	Holding power (W)	Thermocouple type	Weight (kg)
CWF 11/5	1100	47	1000	135 x 140 x 250	595 x 375 x 495	810 x 375 x 540	85 x 90 x 110	5	2400	790	R	30
CWF 11/13	1100	76	1000	200 x 200 x 325	670 x 435 x 608	915 x 435 x 675	120 x 120 x 185	13	3100	1500	R	47
CWF 11/23	1100	36	1000	235 x 245 x 400	715 x 505 x 680	1000 x 505 x 765	155 x 165 x 285	23	7000	1900	R	68
CWF 12/5	1200	51	1100	135 x 140 x 250	595 x 375 x 495	810 x 375 x 540	85 x 90 x 125	5	2400	850	R	30
CWF 12/13	1200	88	1100	200 x 200 x 325	670 x 435 x 608	915 x 435 x 675	120 x 120 x 200	13	3100	1550	R	47
CWF 12/23	1200	45	1100	235 x 245 x 400	715 x 505 x 680	1000 x 505 x 765	155 x 165 x 325	23	7000	2250	R	68
CWF 12/36	1200	37	1100	250 x 320 x 450	810 x 690 x 780	1105 x 690 x 780	170 x 240 x 357	36	9000	--	R	100
CWF 12/65	1200	40	1100	278 x 388 x 595	885 x 780 x 945	1245 x 780 x 945	178 x 288 x 455	65	14000	--	R	165
CWF 13/5	1300	75	1200	135 x 140 x 250	595 x 375 x 495	810 x 375 x 540	85 x 90 x 150	5	2400	1000	R	30
CWF 13/13	1300	121	1200	200 x 200 x 325	670 x 435 x 608	915 x 435 x 675	120 x 120 x 225	13	3100	1800	R	47
CWF 13/23	1300	55	1200	235 x 245 x 400	715 x 505 x 680	1000 x 505 x 765	155 x 165 x 340	23	7000	2500	R	68
CWF 13/36	1300	47	1200	250 x 320 x 450	810 x 690 x 780	1105 x 690 x 780	170 x 240 x 400	36	9000	--	R	100
CWF 13/65	1300	55	1200	278 x 388 x 595	885 x 780 x 945	1245 x 780 x 945	178 x 288 x 255	65	14000	--	R	165

Please note
- Heat up rate is measured to 100°C below max, using an empty chamber
- Holding power is measured at continuous operating temperature
- Maximum power and heat up times based on a 240V supply
- The uniform volume is smaller than the total chamber volume
* Dimensions of control box
