Fan Convection Laboratory Oven - PF

Fan Convection Laboratory Oven - PF
PF 200
Request a quote
Create PDF

Language:

The PF oven range comprise four sizes of bench mounted units with maximum operating temperatures of 300°C, and two sizes of floor mounted units with maximum operating temperatures of 250°C. Fan convection provides greater temperature uniformity and faster recovery rates than natural convection.

Standard features

  • 300°C (PF 30 to PF 200) or 250°C (PF 400, PF 800) maximum operating temperatures
  • 28 to 910 litre chamber volumes
  • Equipped with the R38 digital PID temperature controller (PF 30 to PF 200)
  • Carbolite Gero 301 controller, with single ramp to set-point & process timer (PF 400 & PF 800)
  • Fan convection for rapid heating & recovery & excellent uniformity
  • Chemically resistant stainless steel liner
  • Two nickel-chrome plated wire shelves (The PF 400 is supplied with 3 wire shelves, the PF 800 with 3 perforated stainless steel shelves)
  • Lever latch door & airtight silicone seal
  • Compliant with safety standard BS EN 61010-2-010:2003

Options (specify these at time of order)

  • A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available - more information about controllers
  • Over-temperature protection (recommended to protect valuable contents & for unattended operation)
  • Access port for independent thermocouple
  • Accessory shelves & runners
  • Heavy duty reinforced base and shelves
  • Cable entry ports
  • Variable speed fan control
  • Stoving & curing options for extraction of small volumes of volatile solvents (not compatible with viewing window option)
  • Viewing window (not compatible with stoving & curing option)
  • Interior light (not compatible with stoving & curing option)
  • Air exhaust fan
  • Moisture extraction option (comprising sealed seams and air exhaust fan)
  • Stacking frame to enable units to be stacked one upon another
  • Lockable door
  • Door switch to isolate elements and fan
  • Fixed or castor mounted floor stands
  • Low voltage options for use below 220 V
  • Routine spares kit

Fan Convection Laboratory Oven - PF Examples

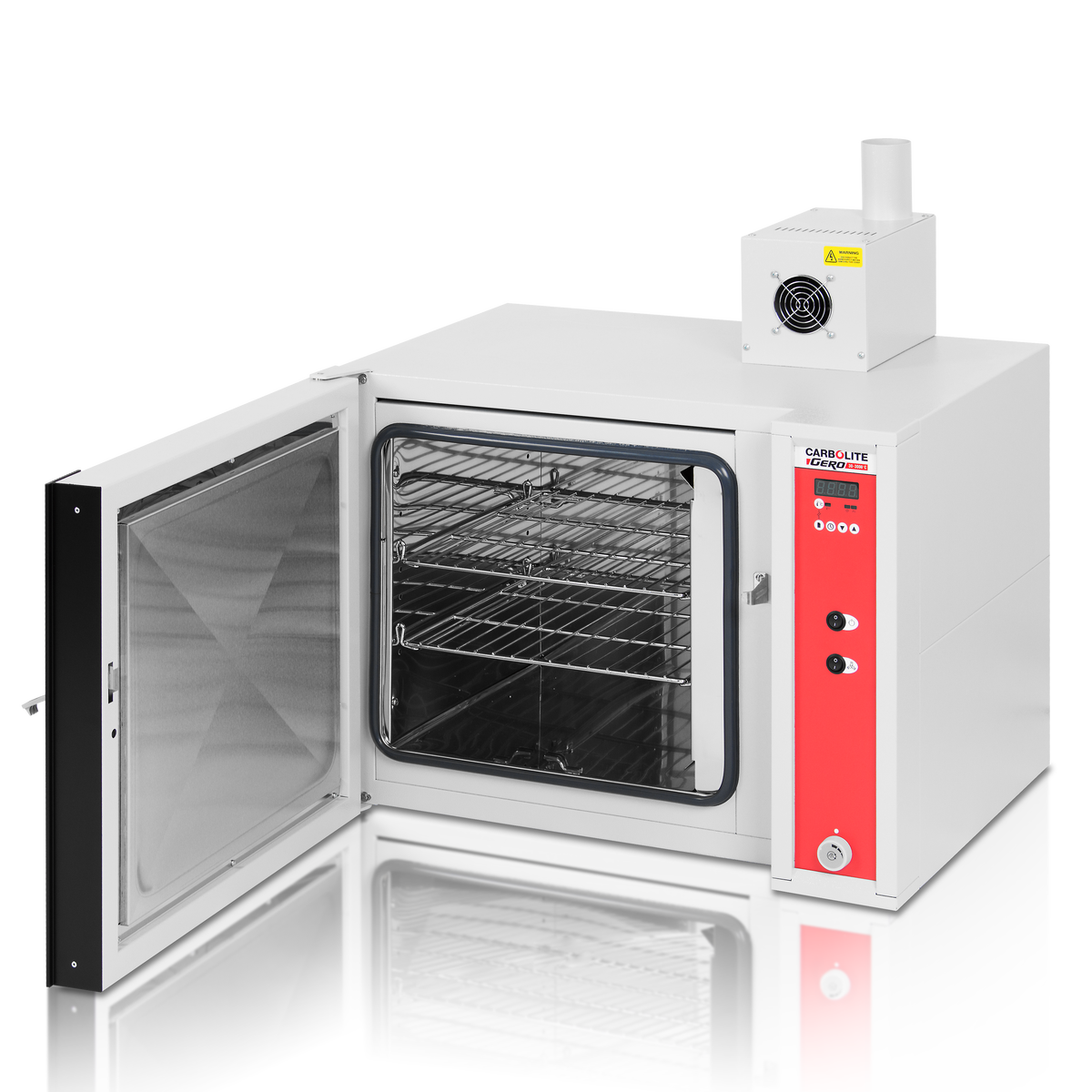

PF 60 with 301 controller and optional exhaust fan and over-temperature control

PF 60 with 301 controller and optional exhaust fan and over-temperature control

PF 200
PF 200
PF 800

PF 800

Content may be subject to modifications or corrections
