Split tube furnace up to 1300°C - FST/FZS

The FST, single zone, and FZS, 3-zone, split tube furnaces can be used either vertically or horizontally and have a maximum operating temperature of 1300 °C.

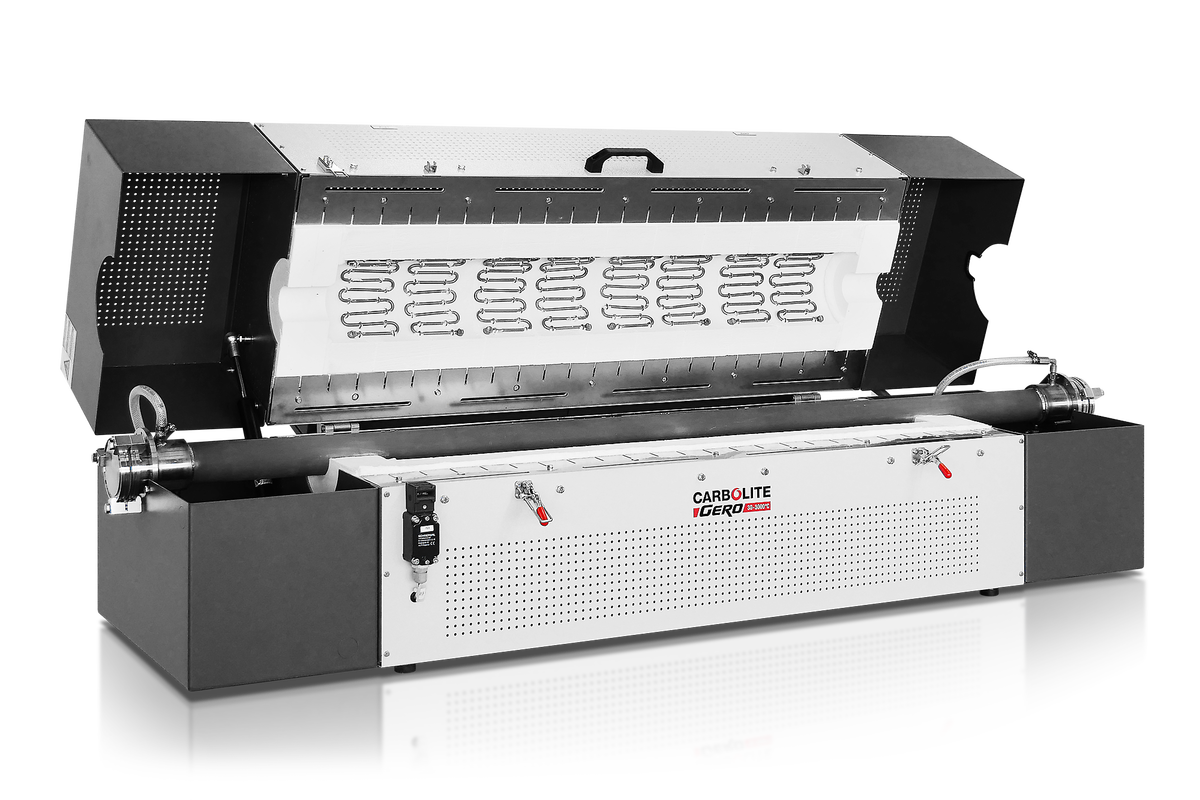

The split heating module allows either easy positioning of the work tube or positioning around reactors which have fixed end flanges. The split design may also allow faster cooling of the sample. Cooling channels are engineered into the housing to aid with convection cooling of the outer case. A handle is attached to the upper half of the split tube furnace with two quick-release clamps to safely unlock and lock the furnace.

The two furnace halves are ceramic fibre modules with high quality APM wire heating elements mounted in the insulation, held in position by a ceramic holding ridge. A safety switch protects the operator by switching off the heating elements once the furnace is opened.

Customized versions and a comprehensive range of tube furnace accessories complete the available options.

Application Examples

CIM, CVD, MIM, ageing, annealing, brazing, calcination, catalyst research, coating, degassing, drying, fuel cell testing, hardening, miniplants, pyrolysis, sintering, soldering, sublimation, synthesis, tempering, thermocouple calibration

Standard features

1300 °C maximum operating temperature
Programmable temperature controller with 24 segments: FST fitted with EPC3016P1, FZS fitted with CC-T1
Over-temperature protection
Accepts work tubes with outer diameter up to 150 mm
Single-zone heated lengths of 200, 500 or 1000 mm
3-zone heated lengths of 500 or 1000 mm
Split design allows work tubes or reactors with fixed flanges to be accommodate
For horizontal or vertical use
Exceptionally long life time and temperature stability
High grade type S thermocouple
Low thermal mass ceramic fibre insulation
High quality 5 mm APM wire heating elements
Supplied with separate control box with 3 m cable, plug and socket
Ethernet communications

Options (specify these at time of order)

A range of sophisticated digital controllers, multisegment programmers and data loggers with digital communication options is available - more information about controllers
Over-temperature protection (recommended to protect valuable contents & for unattended operation)
Wide choice of tube diameters and materials is available
For split tube furnaces, robustly shaped ceramic half tubes are available to protect the heating elements and for sample holding
'L'stand for vertical and/or horizontal use
Insulation plugs & radiation shields to prevent heat loss & improve uniformity
Modified atmosphere and vacuum assemblies are available - more information
Vacuum packages with a choice of rotary vane pump or turbomolecular pump are available
Larger tube diameters
Longer heated lengths
Automated opening mechanism
Flanges for inert gas counter flow
Oxygen sensor for inert gas packages
6 m length of cable between furnace body and control box with plug and socket
Gas packages with manual valve
Laboratory Gas Safety System for safe use with hydrogen above 750 °C
Gas packages with electrically operated valve for up to 3 gases

Split tube furnace up to 1300°C - FST/FZS Mounting configurations

Furnace body and separate control box

Option: Vertical stand

Split tube furnace up to 1300°C - FST/FZS Examples

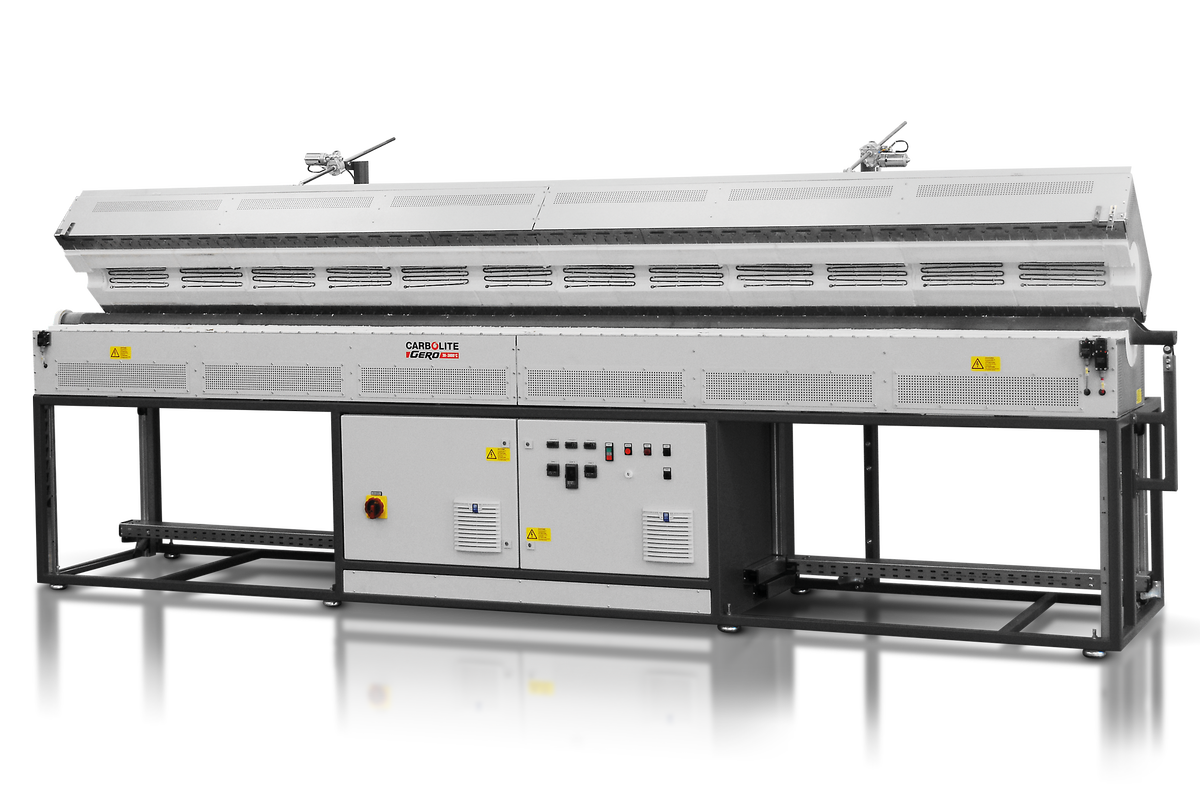

Custom designed 3-zone FZS 13/100/4500 with 4500 mm heated length, automated opening and APM work tube

FZS 13/70/500 inert gas package for Ar and reactive gas O2 equipped with double stage rotary vane pump

Split tube furnace up to 1300°C - FST/FZS Technical Data

	Number of heated zones	Max temp (°C)	Furnace Ø (mm)	Heated length (mm)	Furnace dimensions H x W x D (mm)	Furnace weight (kg)	Tube length for use in air (mm)	Tube length for use with modified atmosphere (mm)	Control module dimensions H x W x D (mm)	Control module weight (kg)	Uniform length ±5°C (mm)	Power (kW)
FST 13/40/200	1	1300	40	200	530 x 460 x 560	35	450	985	500 x 550 x 700	50	100	1.5
FST 13/70/500	1	1300	70	500	530 x 680 x 560	50	670	1205	500 x 550 x 700	50	250	3.0
FST 13/100/500	1	1300	100	500	530 x 680 x 560	75	670	1205	850 x 550 x 700	60	250	4.0
FST 13/100/1000	1	1300	100	1000	530 x 1200 x 560	80	1190	1725	850 x 550 x 700	90	500	10.4
FST 13/150/1000	1	1300	150	1000	590 x 1200 x 560	100	1190	1725	850 x 550 x 700	90	500	12.0
FZS 13/70/500	3	1300	70	500	530 x 680 x 560	50	670	1205	500 x 550 x 700	50	350	3.0
FZS 13/100/500	3	1300	100	500	530 x 680 x 560	75	670	1205	850 x 550 x 700	60	300	4.0
FZS 13/100/1000	3	1300	100	1000	530 x 1200 x 560	80	1190	1725	1100 x 1200 x 700	90	800	10.4
FZS 13/150/1000	3	1300	150	1000	590 x 1200 x 560	100	1190	1725	1100 x 1200 x 700	90	600	12.0
FZS 13/200/1000	3	1300	200	1000	690 x 1200 x 620	150	1190	1725	1100 x 1200 x 700	120	-	16.0
FZS 13/100/1500	3	1300	100	1500	530 x 1700 x 560	120	1690	2252	1100 x 1200 x 700	120	-	14.0
FZS 13/150/1500	3	1300	150	1500	590 x 1700 x 560	150	1690	2225	1100 x 1200 x 700	120	-	18.0
FZS 13/200/1500	3	1300	200	1500	690 x 1700 x 620	200	1690	2225	1100 x 1200 x 700	160	-	22.0
FZS 13/100/4500	3	1300	100	4500	2200 x 4700 x 1100	800	on request	on request	inside frame	-	-	45.0
FZS 13/150/4500	3	1300	150	4500	2200 x 4700 x 1200	950	on request	on request	inside frame	-	-	60.0

Please note
- Heat up rate when using an optional ceramic work tube must be limited to 5 °C/min
- The power supply is based on 200 – 240 V for 1 phase and 380 – 415 V for 3 phase power
- Minimum uniform length in horizontal furnace with insulation plugs fi tted at 100 °C below max. temperature
- Power supply: a = 3 phase 380 - 415 V / b = 3 phase 480 V / c = 3 phase 200 - 210 V / d = 3 phase 220 - 240 V / e = 1 phase 220 - 240 V
